Shut down with a bootable CD + Black Screen

[windows8]

Wow. The only time my laptop ever got that hot was when I was running 5 different games at once to kill my battery.

Do you have an owners manual for that laptop? if not try googling it, and see if theres a section on removal.



[Ashanta]

Hi windows8,

I've been looking for photos, pics on how to remove the fan for Amilo Pro V3505 but I didn't find anything.

Yes, I have the manual but nothing about removal



[Ashanta]

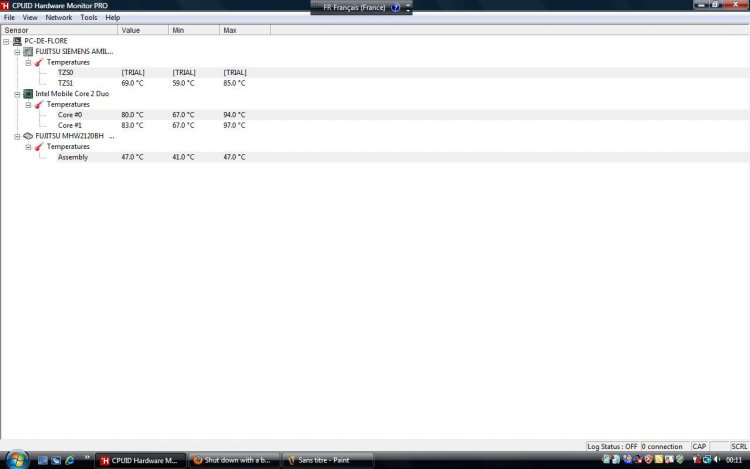

Look at the latest figures from HM Pro:

My room temperature: 25°C



[Patonb]

That's clean, but you need to remove the copper piece. But doing so you will need to reset it with thermal compound.

I'm sure yours is like my acer in that removing the heatsink, you'll get lots of dust.

I'm now almost certain you are shutting down due to heat.



[Ashanta]

The only thing I can remove is the heatsink, but what about removing the fan ?

You said: " But doing so you will need to reset it with thermal compound." What do you mean ?

That's clean, but you need to remove the copper piece. But doing so you will need to reset it with thermal compound.

I'm sure yours is like my acer in that removing the heatsink, you'll get lots of dust.

I'm now almost certain you are shutting down due to heat.



[Patonb]

Thermal comkpound is a paste that goes on to the cpu and video card, so that thne heat gets properly removed from it to the copper cooler.

This video is the best I've seen on redoing it.
How to Apply Thermal Compound (Arctic Silver 5) to A CPU and A GPU - Laptop (Dell Inspiron 1545) - YouTube

Though he puts the paste on weird.

If you can easioly remove your fan, do it. Else clean/suck/blow it out as good as you can.



[Ashanta]

How do you apply it Patonb as you said "he puts on weird" ??

Do you have any brand names to recommend ?

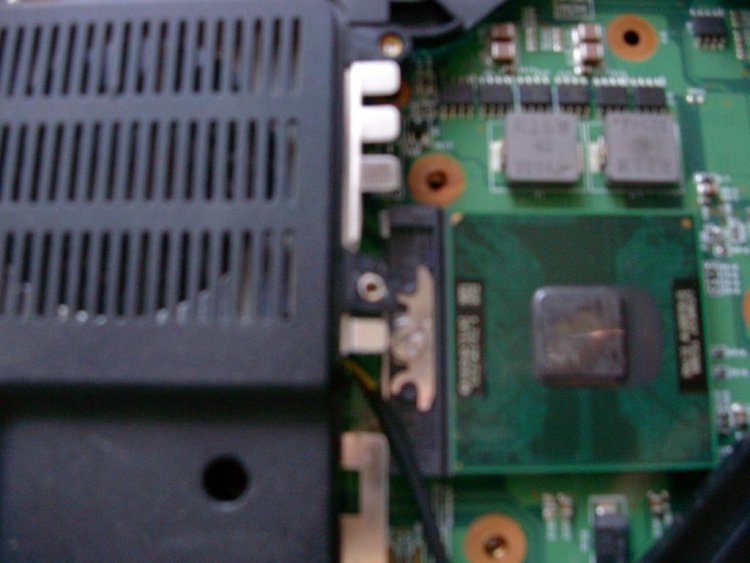

I can suppose that the processor on my laptop too is under the heat sink.

I'd like to remove fan but I don't know how. If someone here, can give some detailed information on how to remove fan from Amilo Pro V3505 (overall the plastic cover). I will really appreciate it.

Which squared piece is on the top of my memory sticks ? (llook at one of the previous photos)

Intel Core 2 means 2 unit processors or only one ?



[Patonb]

its 2 cores.

The best method is put a small blob in the center and let the heatsink squish it out.
You want a non-conductive paste like mx-2
Newegg.com - ARCTIC COOLING MX-2 Thermal Compound

Yes, botht the cpu and gpu are under the heat sink. .

I've looked, but can not find much on your computer.

I think if you remove the heat sink and copper grill, you can get the fan just fine, without removing it.



[Ashanta]

What's gpu ?

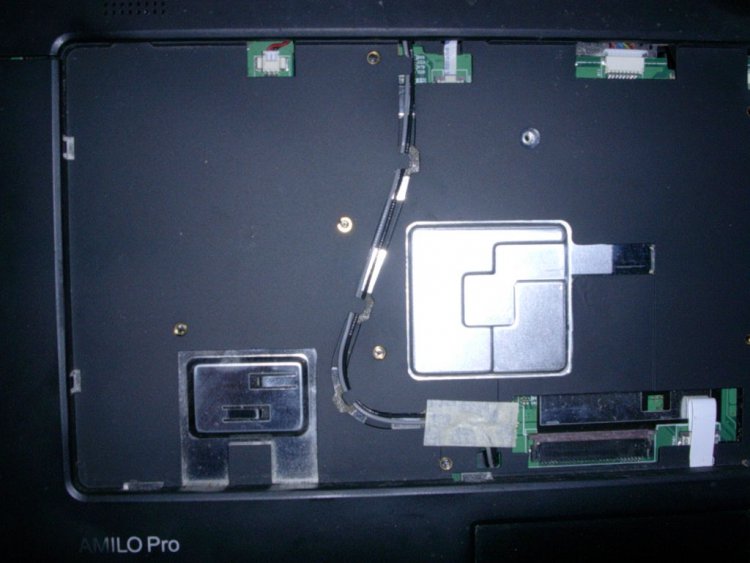

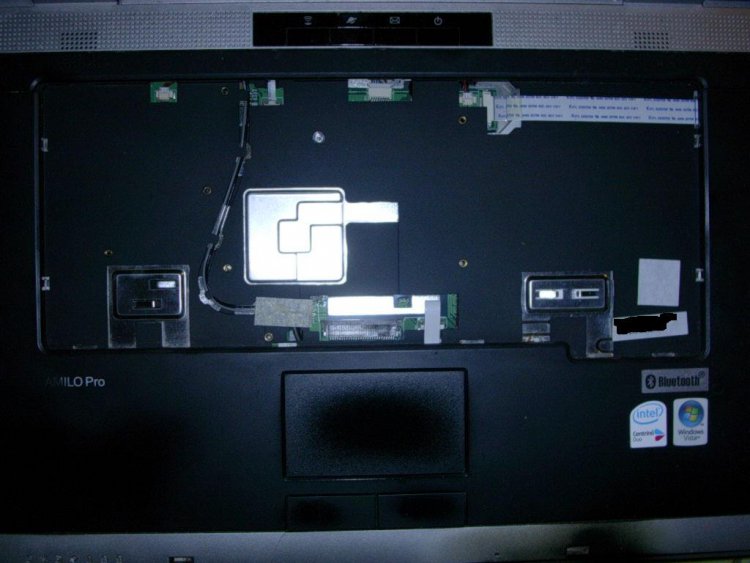

I removed the keyboard but I couldn't remove the black plastic under the keyboard all it's one piece (attached files)

Fan should be located on the left top.

On the back, I think I can remove the heat sink, but I saw that the fan is tightened by an inverted screw (look at previous photos also) and the plastic grid is on the fan. I can't imagine how to remove it.



[Patonb]

GPU =Graphics Processing Unit... The video card

I think you now need to undo the screws on the bottom of the laptop.



[Ashanta]

Thanks Patonb for the explanation.

On the two latest pictures from my previous post ? If yes, the head types is cicular and hollow. They are located under the black plastic.

GPU =Graphics Processing Unit... The video card

I think you now need to undo the screws on the bottom of the laptop.



[Patonb]

No, those are the screw holes for the keyboard.

Try the screws on the bottom of the laptop. By the ones you took out to open the panel

Watch this video for where:
Fujitsu Siemens Amilo Pro V3205 Gehäuseoberteil wechseln - YouTube



[Ashanta]

You mean on the back side ? Pictures with heat sink ?

https://www.vistax64.com/1374995-post60.html



[Patonb]

Yes



[Ashanta]

I removed the heat sink and I cleaned the dusty between the vents and the heat sink.

Now, I can run a bootable CD without troubles as I made a test: Full Test Diagnostic Tools during more than 3 hours. The results: all is OK. It tested, Ram Memory, optical disk (CD/DVD Rom), Lan network, modem, Hard Drive, processor.

This was positive things.

The cons, I can't remove the fan to clean it. I don't know exactely which screws were you telling me.

Black screen are always alive.



[Patonb]

Well, we've got you 1 step ahead FINALLY.

You are still getting shut offs with windows?

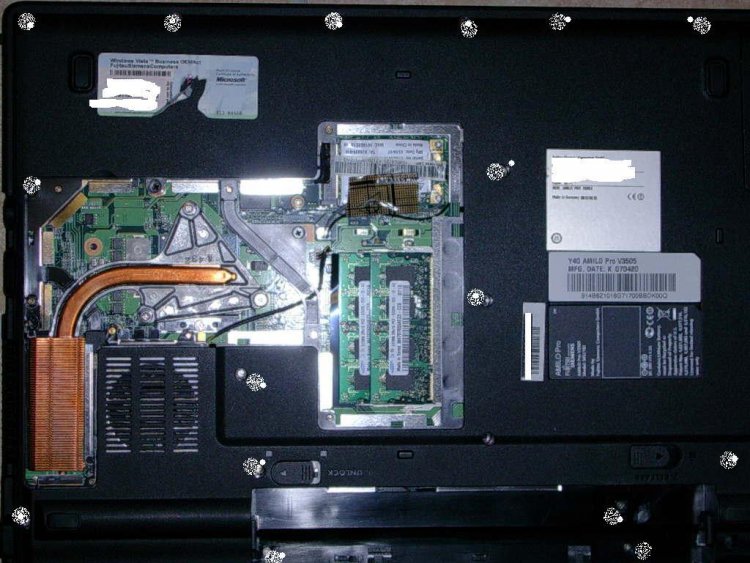

I put white dots where I think thge screws are.



[Ashanta]

Yes, first step is finnished. Only need to put a thermal paste once I get it

No more, shut offs as I told you before for now, as I could ran the Diagnostic Tool during 3 hours, you can imagine, it's like a miracle ! lol :D

"I put white dots where I think thge screws are." I don't understand Patonb

The white dots are the screws that I removed.



[Patonb]

Yes I believe so.

I linked a german youtube video that showed the person removing all those on a different fujitsu model, but i think the under side looked like yours.



[Ashanta]

Yes, it was a different model but I will check again, thanks

Yes I believe so.

I linked a german youtube video that showed the person removing all those on a different fujitsu model, but i think the under side looked like yours.



[Ashanta]

By the way, I didn't find the GPU.
