Upgrading my HP Laptop, what memory type...
...do I need and is it as easy as just buying a new stick and installing it? I have 2GB RAM and like to add another. I just like to know if there are others with similar specs as I do can recommend a good RAM that I can install. I like to go up to 3GB or 4GB. Thanks.
I've managed to find a list of different memories. Now I am a bit confuse on which to get. Can someone advise me please. Please click on the link below to see the list of memories:
memory
-
- Manufacturer/Model
- HP HD X9050 20,1" widescreen (laptop)
- CPU
- Intel Core 2 Duo T7700 / 2.4 GHz
- Memory
- DDR II SDRAM 2GB( max 4gb)
- Graphics card(s)
- ATI Radeon HD 2600XT 256RAM
- Monitor(s) Displays
- 20.1 in TFT active matrix (Ultra BrightView Widescreen)
- Screen Resolution
- max 1680 x 1050
- Hard Drives
- Serial ATA : 2x120GB 5400rpm (Work Drive)
SATA/300 16MB 1x160GB 7200RPM (Game Drive)
- Mouse
- cordless
- Internet Speed
- Gigabit Ethernet , Ethernet , Fast Ethernet Mobile Broadband
- Other Info
- 1.0 Memory , 2.0 Memory card reader , 1.0 ExpressCard 54/34 Interfaces 1.0 x Ethernet - USB 2.0 , 1.0 x USB 2.0 - RJ-11 , 1.0 x Expansion - RJ-45 , 1.0 x Display / video - VGA , 1.0 x Speaker , 1.0 x IEEE 1394 (FireWire) , 1.0 x SPDIF , 1.0 x TV-Out , 1.0 x Consumer IR , 1.0 x eSATA , 4.0 x Modem , 1.0 x HDMI , 1.0 x Headphones , 1.0 x Microphone , 2.0 x TV tuner
Eye know, eye know
Vista Guru
Gold Member
You have to match the specs of your existing modules. The CAS timings have to be the same.

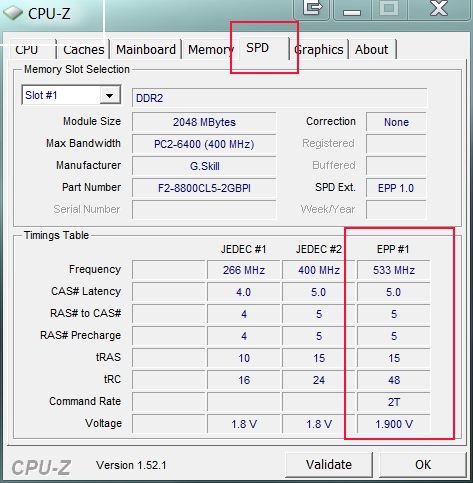

Download CPU-Z and check the SPD tab. Those are the numbers you must match.
http://www.cpuid.com/cpuz.php
Example:
Otherwise you will face possible instability issues, or even failure to boot.
-
- Manufacturer/Model
- Self Built
- CPU
- i7 3770K HT ON 4.7GHz
- Motherboard
- P8Z68 Deluxe Gen 3
- Memory
- 8GB G.Skill Ripjaws X 2133mhz
- Graphics card(s)
- 2x Gigabyte GTX 670 OC WindForce SLI
- Sound Card
- X-FI Forte + ATH-AD900
- Monitor(s) Displays
- x2 Dell U2410 / 58" Samsung / "40 Sony
- Screen Resolution
- 1920*1200 / 1920x1080
- Hard Drives
- 2x Intel 520 240GB * Crucial M4 128GB * 2x Samsung F3 1TB (RAID 0) * 2x WD Caviar Blacks 2TB (RAID 0)
- PSU
- Corsair AX1200W
- Case
- Lian Li PC-V1020A
- Cooling
- NH-D14: 3x140mm Gelid Wing 14: Sunbeam Rheobus Extreme
- Mouse
- Razer Imperator + Thermaltake Theron
- Keyboard
- Topre Realforce // Ducky Shine Cherry MX Black
- Other Info
- Laptop Specs:
Clevo Sager P170HM //
17.3 Matte 1920x1200 //
i7 2720QM // 8GB 1333mhz //
Dedicated GTX 485M //
240GB Intel 520 + 750GB + Blu-Ray //
Samsung Story 2TB USB 3.0

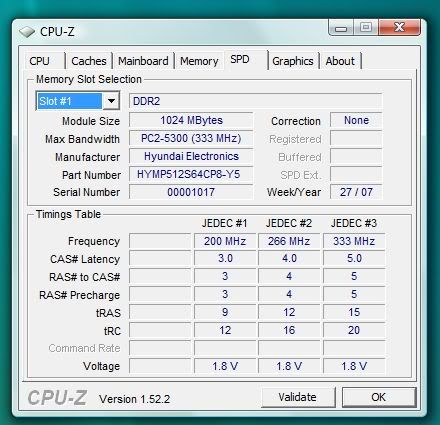

Alright. Can you help me choose then? Here is the results. I really do not understand what it means. Thanks.
-
