get ram runnin at proper speed

Look in your bios to see what the speed is. DDR2 memory might be reported at 400 or 333 but it is double data rate, 800 or 666.
The only way you can alter memory speed is in the bios as far as I know.


My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    I5 3570K
    Motherboard
    Gigabyte Z77-DS3H
    Memory
    4 x 4GB corsair ballistix sport DDR3 1600 Mhz
    Graphics card(s)
    Gigabyte Geforce GTX 660 TI
    Sound Card
    creative x-fi
    Monitor(s) Displays
    Primary CiBox 22" Widescreen LCD ,Secondary Dell 22" Widescreen
    Screen Resolution
    Both 1680 x 1050
    Hard Drives
    2 x 500G HD (SATA) 1 x 2TB USB
    PSU
    Corsair HX 620W ATX2.2 Modular SLI Complient PSU
    Case
    Antec 900 Ultimate Gaming Case
    Cooling
    3 x 80mm tri led front, 120mm side 120mm back, 200mm top
    Mouse
    Technika TKOPTM2
    Keyboard
    Logik
    Internet Speed
    288 / 4000
    Other Info
    Creative Inspire 7.1 T7900 Speakers Trust Graphics Tablet
ahh double rate..gotcha...theres a thing for ddr2-800mhz and a option for 333,400...guess i'll jus do 800 and 400..not knowin the difference...ones the fsb speed i believe


My Computer

ok totally avoid my previous post...anyways the only option i got is the dram frequency which hasnt changed...its at auto right now but i set it to 800mhz and its only calculating 400.9mhz...now is that how its supposed to be times 2? or is it at 200 X 2


anyways...the 800mhz seems to work faster than auto so i mite keep it like this...even though im not sure


My Computer

Look at this pages faq;
CPUID

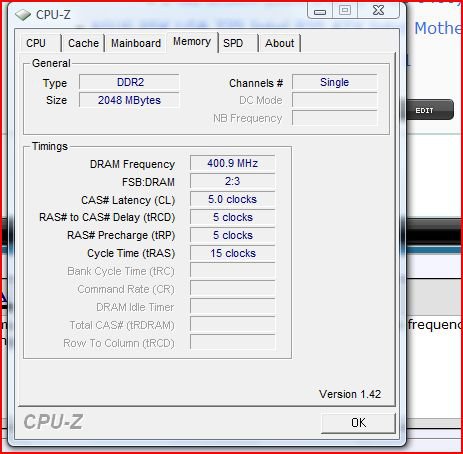

I am interpreting the screenie ar DRAM Frequency =400.9 FSB DRAM 2.3.
400.9 x 2.3 =922.07 This is way out.

Is your rig overclocked or set to normal/turbo


My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    I5 3570K
    Motherboard
    Gigabyte Z77-DS3H
    Memory
    4 x 4GB corsair ballistix sport DDR3 1600 Mhz
    Graphics card(s)
    Gigabyte Geforce GTX 660 TI
    Sound Card
    creative x-fi
    Monitor(s) Displays
    Primary CiBox 22" Widescreen LCD ,Secondary Dell 22" Widescreen
    Screen Resolution
    Both 1680 x 1050
    Hard Drives
    2 x 500G HD (SATA) 1 x 2TB USB
    PSU
    Corsair HX 620W ATX2.2 Modular SLI Complient PSU
    Case
    Antec 900 Ultimate Gaming Case
    Cooling
    3 x 80mm tri led front, 120mm side 120mm back, 200mm top
    Mouse
    Technika TKOPTM2
    Keyboard
    Logik
    Internet Speed
    288 / 4000
    Other Info
    Creative Inspire 7.1 T7900 Speakers Trust Graphics Tablet
Just downloaded and ran CPU-Z myself, my test results are the same as yours. Dont worry your ram is running at full speed.



My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    I5 3570K
    Motherboard
    Gigabyte Z77-DS3H
    Memory
    4 x 4GB corsair ballistix sport DDR3 1600 Mhz
    Graphics card(s)
    Gigabyte Geforce GTX 660 TI
    Sound Card
    creative x-fi
    Monitor(s) Displays
    Primary CiBox 22" Widescreen LCD ,Secondary Dell 22" Widescreen
    Screen Resolution
    Both 1680 x 1050
    Hard Drives
    2 x 500G HD (SATA) 1 x 2TB USB
    PSU
    Corsair HX 620W ATX2.2 Modular SLI Complient PSU
    Case
    Antec 900 Ultimate Gaming Case
    Cooling
    3 x 80mm tri led front, 120mm side 120mm back, 200mm top
    Mouse
    Technika TKOPTM2
    Keyboard
    Logik
    Internet Speed
    288 / 4000
    Other Info
    Creative Inspire 7.1 T7900 Speakers Trust Graphics Tablet

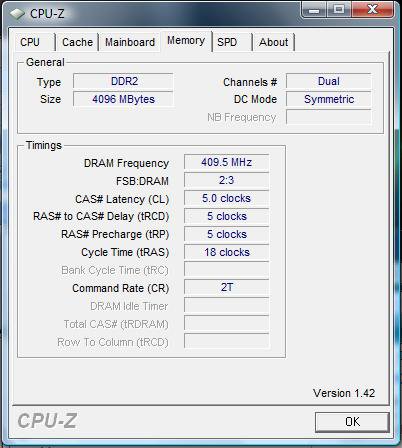

My results are identical also (running OCZ 6400 ddr 2x2gb sticks)

BTW the voltage returned at the bottom of the SPD page in cpu-z, is that voltage BEFORE adjustments by the motherboard?

Reason im asking is that im running the OCZ ram on a Gigabyte P35C-DS3R and was told then underclocked voltage by 0.2 so i was to change voltage for the ram byt 0.2. But it says 1.8 on my cpu-z and the pcz is sposed to run at 2.1 so i really need to change it by 0.3....if you get me :D


My Computer

yeah 400Mhz means DDR2 800.
@Darktounge Cpu-z is usually right but i suggest you stick to the Voltage suggested by OCZ.


My Computer

System One

  • CPU
    Intel Core 2 Duo T5800 @ 2.0Ghz
    Motherboard
    Intel
    Memory
    4GB
    Graphics card(s)
    Nvidia 9650M GT
    Monitor(s) Displays
    Asus N80VN-X1 Laptop
    Screen Resolution
    1280 X 800
    Hard Drives
    1 X 250GB 5200 RPM
    Internet Speed
    11 MBPS
    Other Info
    XBOX 360 Controller | Vista X64 | Simpledrive 500GB
The "2" in DDR2 means Double Data Rate. So when your clock says 400, you are running the memory at 800. There is nothing wrong.


My Computer

System One

  • Manufacturer/Model
    Proudly Built by Me!
    CPU
    Intel Q6600
    Motherboard
    DFI UT LP P35 T2R
    Memory
    8GB OCZ Reaper DDR2 800 C44GK 4-4-4-12 2T
    Graphics card(s)
    Sapphire Radeon 4870x2
    Sound Card
    AuzenTech Prelude 7.1
    Monitor(s) Displays
    1 Acer P243 24" and 1 Samsung T260 26" Monitor/HDTV
    Screen Resolution
    Both are running at 19x12
    Hard Drives
    Seagate 1TB 7200.11 (Vista x64) Seagate 500GB 7200.11 (Win 7 x64)
    PSU
    OCZ GameXtream 900w
    Other Info
    FSB at 400 (1600) Mhz, CPU Multi @ 8 for 3.2Ghz
Are these forums a little messed up? I see it saying the previous page that i replied 53 mins ago but i didnt , it was hours ago.then there my reply, its gone and so is the rpely to my reply O.O since i got email telling me what it said.


mm nm when i did this reply the previous ones all popped up. Forums probably running on vista me thinks :P



BTW i was always lead to believe that DDR ment Double Data Rate and the 2 is now just the 2nd version surely?

Last edited:

My Computer

OK, CPU-z showing 400MHz is fine. It is DDR so you double the data rate, your memory is running at 800MHz effective.

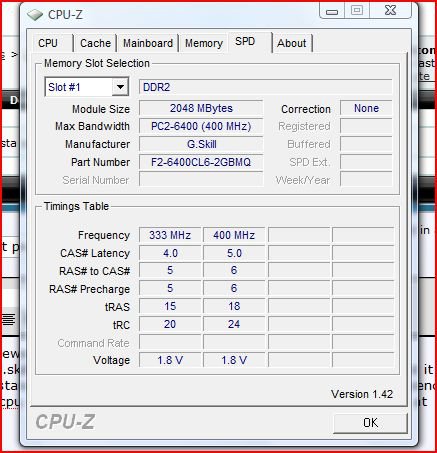

Also, don't look at the SPD tab on CPU-z as what is running right now. The SPD tab shows the standard settings your RAM *CAN* run at. Of course, that doesn't limit you to overclocking them, but those SPD settings are what the manufacturer puts on the chips as the "default" speeds if you will.
