ALC272 possible for 4 speaker (quadrophone)?

Y

YamadaKaito

New Member
My Laptop (Toshiba A355D-S6930; Vista HP 64bit) using ALC272 (6.0.1.5689) Realtek soundcard and only have a mic and a headphone jack.

Is there anyway to change the mic input for stereo-rear speaker output?
I tried all way to get it, but none.. nothing... :cry:
(windows sound in CP, etc.. etc... still show stereo output only...)

Thx in adv... Thankiess... :)

~My Laptop detailed Specification~


My Computer

System One

YamadaKaito said:
My Laptop (Toshiba A355D-S6930; Vista HP 64bit) using ALC272 (6.0.1.5689) Realtek soundcard and only have a mic and a headphone jack.

Is there anyway to change the mic input for stereo-rear speaker output?
I tried all way to get it, but none.. nothing... :cry:
(windows sound in CP, etc.. etc... still show stereo output only...)

Thx in adv... Thankiess... :)

~My Laptop detailed Specification~
Click to expand...

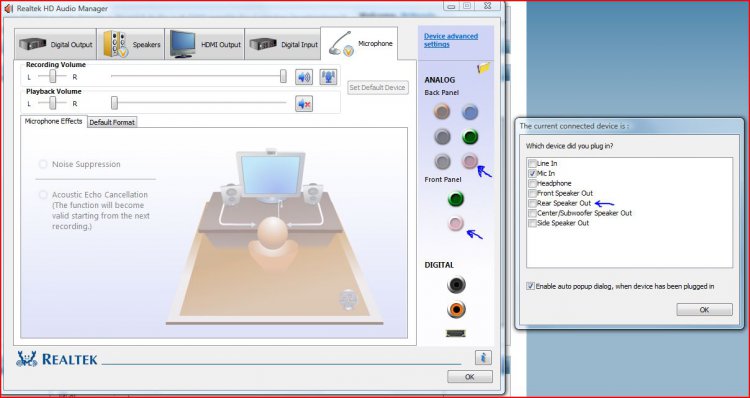

you need to find out if your mic records in stereo, otherwise you will only get 3 of the 4 channels, plug a set of headphones into the mic and use recording software to find out if its stereo or not, (before you are slightly confused, headphones are effectively microphones) speak into one clearly and speak into the other, playback and if you hear both channels, then all you have to do is open up realtek audio manager, double click on mic (pink) and set it to rear out.
yours will only have panel on it, not front and rear, so ive arrowed both just for principal


Attachments

  • micoutput.JPG
    81.6 KB · Views: 340

My Computer

System One

  • Manufacturer/Model
    Custom Build
    CPU
    Intel Q6600 @ 2.8GHz
    Motherboard
    Evga NF78-CK-132-A 3-Way SLI
    Memory
    8Gb DDR2 Corsair Dominator @ 1066Mhz 5-5-5-15
    Graphics card(s)
    EVGA 560 GTX SC FTW 1GB
    Sound Card
    Realtek ALC888 7.1 Audio, Logitech G35 7.1 Surround Headset
    Monitor(s) Displays
    Dell S2409W 16:9, HDMi, DVI & VGA
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 7200rpm 250Gb SATA, Samsung 7200rpm 750Gb SATA, WD 7200rpm 1TB SCSI SATA.
    PSU
    Xigmatek 750W Quad sli quad core 80% eff
    Case
    Antec 900 Gaming Case
    Cooling
    Zalman CNPS9700-NT NVIDIA Tritium, Dominator RAM cooler
    Mouse
    Razor Lachesis Banshee V2 Blue, 4000DPI
    Keyboard
    Logitech generic keyboard
    Internet Speed
    16Mb Sky bb
    Other Info
    Wireless Gaming Receiver for Windows, Wireless Xbox 360 Pad, Wireless Xbox 360 Les Paul Guitar

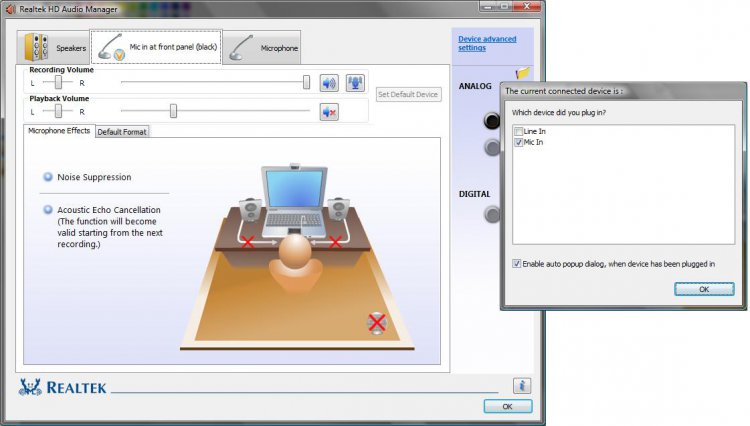

Um.. Thx for Reply... But this after i plug the mic or lineout jack...

attachment.php


It not showing the rear output... Is this the driver version problem or something else?:confused::huh:

Big Thx...

EDIT: LOL just found in the spec page that the "Microphone jack (mono)"...
Now, is there any way to get 4 // 5.1 // more via usb?

THX...
