5.1 Surround help please.

kdai

New Member
Hey guys, I purchased a Creative Inspire T6100 this summer and I got it to work with my Vista Home Prem x64 for a while, then this past week it just broke on me, what i mean is that I only get stereo quality sound (2 front speakers and center when voice chat is on.) My motherboard is the Asus P5Q-Pro and i am using the onboard sound card which is the Realtek HD audio soundcard on 6.0.1.5591 driver version.

Now i went into the settings already and configured my speaker system to 5.1 surround sound (thats what i did when i bought my system first and it worked fine.) now it wont work. when i press test however, all my speakers work, so it cant be a connectivity problem. it is just when i use itunes to play music or when i play games, or youtube or whatever, i only hear the 2 front speakers, my sub and rear 2 just dont work, only gives out staticy sounds when u listen to them.

Any help is appreciated, thanks!:cry:

Pic here:
http://i36.tinypic.com/21btd9y.jpg



My Computer

I am not really familiar with Realtek, but check to see the system is automatically switching between the front inputs and the rear when a jack is unplugged. There is a switch in the Real Tech control panel or you can enable this in BIOS on the Asus boards.


My Computer

System One

  • Manufacturer/Model
    Scratch Built
    CPU
    Intel Quad Core 6600
    Motherboard
    Asus P5B
    Memory
    4096 MB Xtreme-Dark 800mhz
    Graphics card(s)
    Zotac Amp Edition 8800GT - 512MB DDR3, O/C 700mhz
    Monitor(s) Displays
    Samsung 206BW
    Screen Resolution
    1680 X 1024
    Hard Drives
    4 X Samsung 500GB 7200rpm Serial ATA-II HDD w. 16MB Cache .
    PSU
    550 w
    Case
    Thermaltake
    Cooling
    3 x octua NF-S12-1200 - 120mm 1200RPM Sound Optimised Fans
    Mouse
    Targus
    Keyboard
    Microsoft
    Internet Speed
    1500kbs
    Other Info
    Self built.
I have just installed Vista x64 ultimate and have a SB X-fi sound card with the Creative T6100 speakers. I have the same problem front 2 and middle (plus Sub ) speakers work fully where as the rear 2 speakers are extremely low. All ifo is set to 5.1 Surround but just like 3 way stereo , How can I get it sorted to play in full 5.1 Surround .

cheers

Ade

Last edited:

My Computer

System One

  • Manufacturer/Model
    Dell Dimension 9200
    CPU
    Intel(R) Core(TM)2 CPU 6400 @2.13Ghz
    Memory
    4.00ram
    Graphics card(s)
    Nvidia Geforce 8500 GT
    Sound Card
    Soundblaster X-fi
    Hard Drives
    250gb
    Mouse
    Logitech 518
    Internet Speed
    7meg
This is because music (i.e. mp3) is only stereo not 5.1, so you only hear sound from stereo (front left & right) speakers. Also, you need to set games to use 5.1 in the sound options

This problem can be solved with creative xfi 5.1 cards by opening the the blue audio console, clicking 'x-fi cmss-3d' tab & setting stereo envelopment at 54%.
then by clicking the 'surround' option & choose 'stereo surround' to stop it sounding tinny.


My Computer

System One

  • Manufacturer/Model
    §ĮŁΣNŦ Д$$Д$$ĮN
    CPU
    Xeon X3360
    Motherboard
    P5W64 WS Pro
    Memory
    Corsair XMS2 8gb @ 5-4-4-12 833mhz
    Graphics card(s)
    EVGA Geforce GTX470 SC+
    Sound Card
    X-Fi Extreme Gamer Fatlity Edition
    Monitor(s) Displays
    Samsung T200
    Screen Resolution
    1680x1050
    Hard Drives
    WD 1TB RE3
    PSU
    Thermaltake Toughower 750w
    Case
    NZXT Lexa Silver
    Cooling
    Zalman CNPS10x Extreme
    Mouse
    Razer Deathadder 3500dpi
    Keyboard
    Razer Lycosa Mirror
    Internet Speed
    24Mb/s
    Other Info
    My massive wifi antenna is in the post!
My Harmon Kardon 7.1 receiver does 2.0 to 7.1. CD music is mostly 2.0 with some 5.1. DVDs are 2.0 to 6.1ES. You can get a 7.1 testing CD from most A/V shops for $30. You can test various setups with it.


My Computer

System One

  • CPU
    pair of Intel E5430 quad core 2.66 GHz Xeons
    Motherboard
    Supermicro X7DWA-N server board
    Memory
    16GB DDR667
    Graphics card(s)
    eVGA 8800 GTS 640 MB video card
    Hard Drives
    SAS RAID
Hi Kdai and welcome to Vista Forums :party:

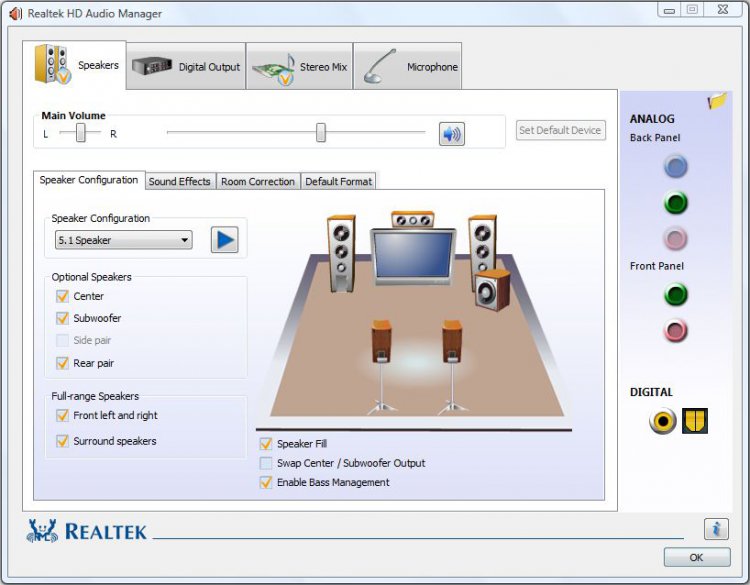

You probably just need to make a few adjustments to your settings. These are the settings that I recommend:
attachment.php

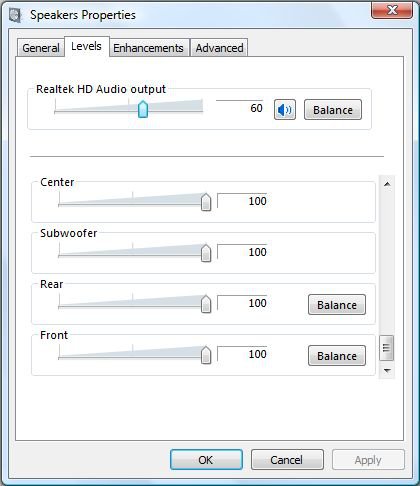

In addition, on the 'Speakers Properties' tab, check the relative levels (and balance) of the speakers.
Don't forget to check the settings on the speakers themselves.
As Michael says, you will get true multi-speaker output ONLY IF the source was encoded that way.


Attachments

  • Capture.JPG
    61.3 KB · Views: 2,340

My Computer

System One

  • Manufacturer/Model
    Dwarf Dwf/11/2012 r09/2013
    CPU
    Intel Core-i5-3570K 4-core @ 3.4GHz (Ivy Bridge) (OC 4.2GHz)
    Motherboard
    ASRock Z77 Extreme4-M
    Memory
    4 x 4GB DDR3-1600 Corsair Vengeance CMZ8GX3M2A1600C9B (16GB)
    Graphics card(s)
    MSI GeForce GTX770 Gaming OC 2GB
    Sound Card
    Realtek High Definition on board solution (ALC 898)
    Monitor(s) Displays
    ViewSonic VA1912w Widescreen
    Screen Resolution
    1440x900
    Hard Drives
    OCZ Agility 3 120GB SATA III x2 (RAID 0) Samsung HD501LJ 500GB SATA II x2 Hitachi HDS721010CLA332 1TB SATA II Iomega 1.5TB Ext USB 2.0 WD 2.0TB Ext USB 3.0
    PSU
    XFX Pro Series 850W Semi-Modular
    Case
    Gigabyte IF233
    Cooling
    1 x 120mm Front Inlet 1 x 120mm Rear Exhaust
    Mouse
    Microsoft Comfort Mouse 3000 for Business (USB)
    Keyboard
    Microsoft Comfort Curve Keyboard 3000 (USB)
    Internet Speed
    NetGear DG834Gv3 ADSL Modem/Router (Ethernet) ~4.0 Mb/s (O2)
    Other Info
    Optical Drive: HL-DT-ST BD-RE BH10LS30 SATA Bluray Lexmark S305 Printer/Scanner/Copier (USB) WEI Score: 8.1/8.1/8.5/8.5/8.25 Asus Eee PC 1011PX Netbook (Windows 7 x86 Starter)
hey guys, i kinda have the same problem with realtek HD audio card and Genius Home-Theater 5.1 speakers. I can hear the sound perfectly from front, central and sub speakers, but rear ones are just so low, and the voice isn't going there.
Can it be somehow fixed or not?


My Computer

System One

  • Manufacturer/Model
    Custom built
    CPU
    Intel QuadCore Q6600 OCed @ 3.01Ghz
    Motherboard
    Asus P5E WS Professional
    Memory
    2x2GB OCZ Reaper 1066 5-5-5-15
    Graphics card(s)
    Sparkle nVidia Gforce 8800GT 512MB
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Samsung SyncMaster 204B
    Screen Resolution
    1600x1200
    Hard Drives
    WD RaptorX 150GB @ 10.000Rpm WD 500GB
    PSU
    ThermalTake 750W
    Case
    ThermalTake Kandalf Liquid Cooling System
    Cooling
    Liquid Cooling System
    Mouse
    Logitech MX Revolution
    Keyboard
    Logitech diNovo Edge
    Internet Speed
    ADSL 512Kbps + Wireless 10Mbps
